| Sản phẩm |
Bo mạch chủ |
| Tên Hãng |
GIGABYTE |
| Model |

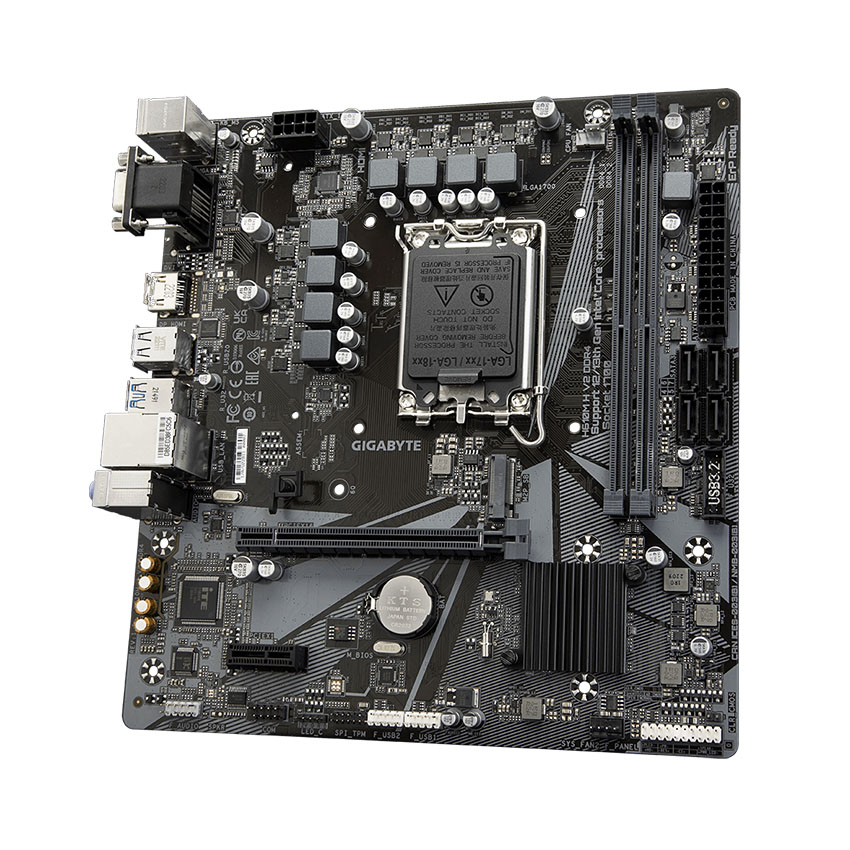

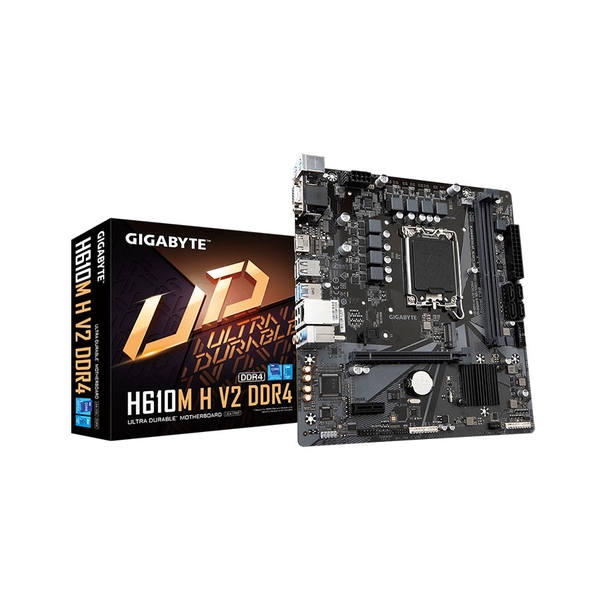

H610M H V2 DDR4 |
| CPU hỗ trợ |
Hỗ trợ cho thế hệ thứ 12 và 13 Intel® Core Socket LGA1700 |
| Chipset |
H610 |
| RAM hỗ trợ |
1.Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
2.2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
3.Dual channel memory architecture
4.Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5.Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6.Support for Extreme Memory Profile (XMP) memory modules |
| Khe cắm mở rộng |
CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Ổ cứng hỗ trợ |
Chipset:
1.1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
2.4 x SATA 6Gb/s connectors |
| Cổng kết nối (Internal) |
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper |

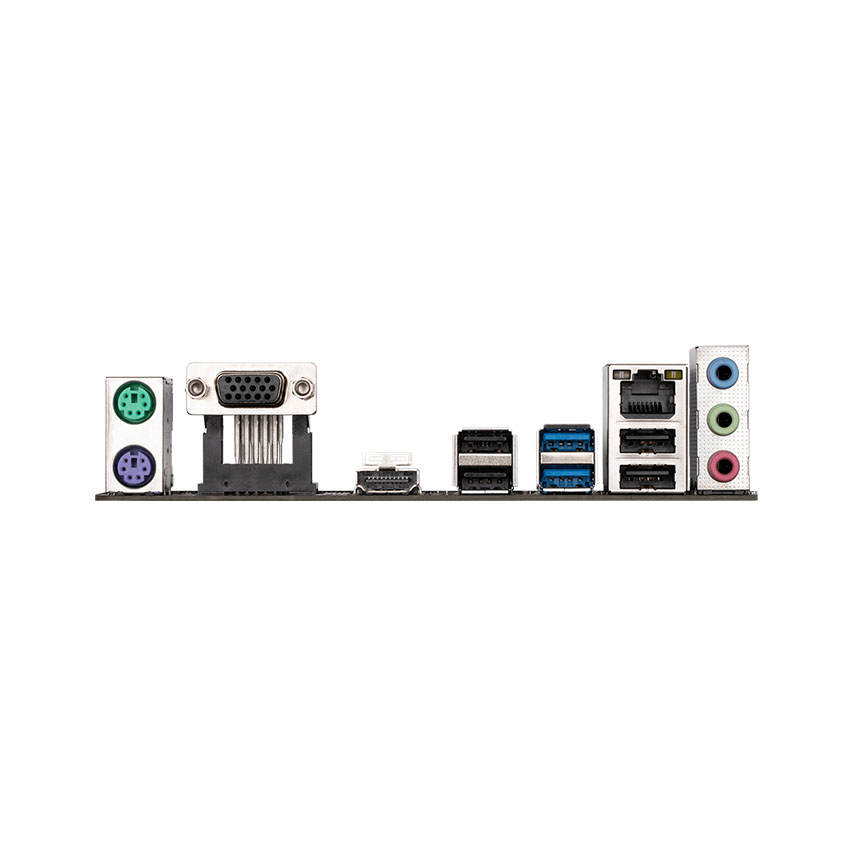

| Cổng kết nối (Back Panel) |
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks |
| LAN / Wireless |
Realtek® GbE LAN chip (1 Gbps/100 Mbps) |
| Kích cỡ |

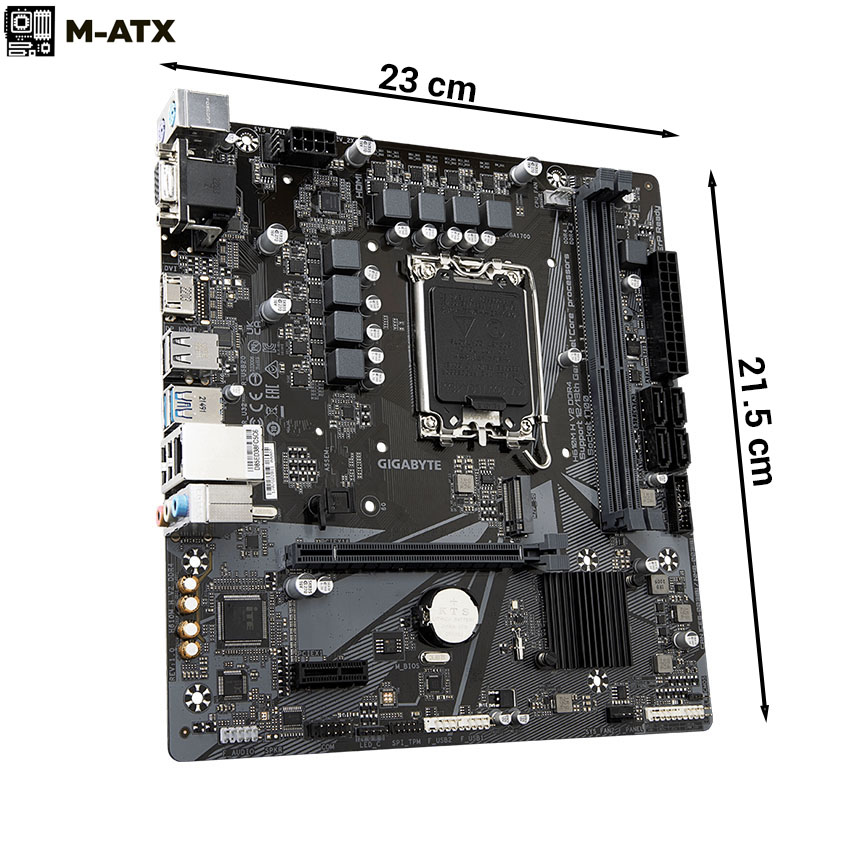

Micro ATX Form Factor; 23.0cm x 21.5cm |
