| Mã sản phẩm |

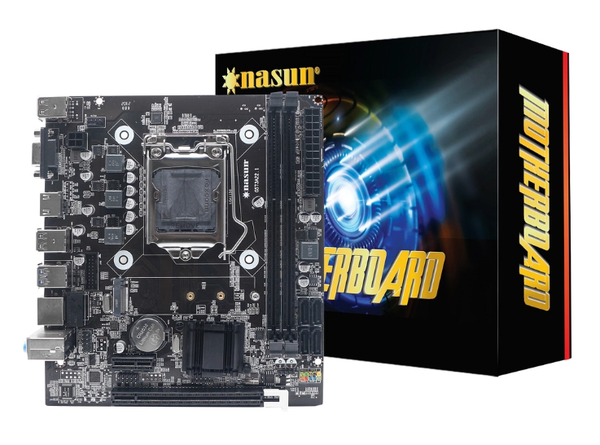

Mainboard Nasun H81 |
| CPU |
Supports LGA1150 Socket I3/I5/I7 series CPU |
| Chipset |
Intel H81 Express Chipset |
| Khe ram hỗ trợ |
2*240-pin DDRⅢ SDRAM slots |
| Memory up to 16GB |
| Supports dual channal DDR3 1066/1333/1600 MHZ |
| Cổng I/O mặt sau |
4xUSB2.0 |
| 2xUSB3.0 |
| 1x VGA port |
| 1x HDMI port |
| 1x RJ45 port |
| 1x 3-in-1 Audio port(line in/line out/MIC in) |
| Cổng I/O nội bộ |
1x 24-pin ATX power connector |
| 1x 4-pin ATX 12V power connector |
| 2x USB connector, can support 4*USB 2.0 |
| 1x F-AUDIO connector |
| 1x F-PANEL connector |
| 1x F-SPEAKER connector |
| 1x FAN connector |
| 1x LPC-DEBUG connector |
| Audio |
Realtek ALC 6-channal HD Audio Codec onboard |
| provides front audio interface |
| provides front stereo mic interface |
| Lưu trữ |
2 x SATA 2.0 (3GB/s) ports,2 x SATA 3.0 (6GB/s) ports |
| Mạng lan |
Realtek 10/100/1000Mbps Mbps LAN onboard |
| Cổng mở rộng PCI |
1x PCI Express x16 slot |
| 1x PCI Express x1 slot |
| 1x NVME slot |
| Kích thước |
Micro-ATX architecture(17*19cm) |
