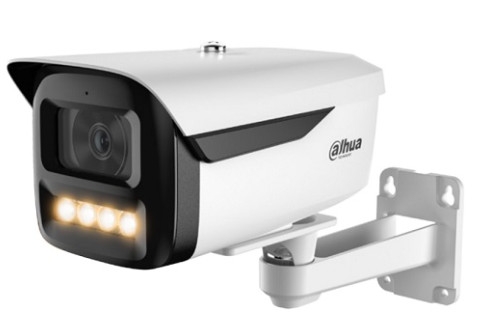

Camera IP Wizsense Full-color 4.0 Megapixel DAHUA DH-IPC-HFW2449M-AS-LED-B
4MP Full-color Fixed-focal Bullet Wizsense Network Camera
Tích hợp đèn led trợ sáng cho hình ảnh có màu 24/24h
■ 4MPixel cảm biến CMOS kích thước 1/2.9”
■ Chuẩn nén hình ảnh H265+
■ Full color camera 25/30fps@4MP
■ Độ nhạy sáng tối thiểu 0.0025 lux@F1.0
■ Chống ngược sáng WDR,3DNR, AGC, BLC
■ Khoảng cách đèn led trợ sáng 50m
■ Hỗ trợ SMD plus và IVS
■ Tích hợp Mic . Audio in/out 1/1. Alarm in/out 2/2.
■ Hỗ trợ thẻ nhớ 256GB
■ Ống kính 3.6mm, IP67
■ DC12V/ POE
■ Chất liệu nhựa + kim loại
■ Kích thước : 201.0 mm × 103.8 mm × 97.8 mm. Trọng lượng 0.71 kg
- Cảm biến hình ảnh: CMOS kích thước 1/2.9 inch.
- Độ phân giải: 4.0 Megapixel.
- Tầm quan sát đèn led: 50 mét.
- Hỗ trợ các tính năng camera: Chống ngược sáng WDR (120dB), chống nhiễu hình ảnh 3DNR, chống ngược sáng BLC, HLC.
- Hỗ trợ chức năng bảo vệ vành đai: Tripwire, Intrusion (có phân biệt người, xe) và SMD Plus.
- Ống kính cố định: 3.6mm.
- Tích hợp Mic.
- Hỗ trợ khe cắm thẻ nhớ Micro SD lên đến 256GB.
- Điện áp: 12 VDC/PoE (802.3af).
- Nhiệt độ hoạt động: -40°C to +60°C.
- Tiêu chuẩn chống bụi và nước: IP67 (thích hợp sử dụng trong nhà và ngoài trời).
Thông số kỹ thuật
| Camera |
| Image Sensor |
1/2.9 inch CMOS |
| Max. Resolution |
2688 (H) × 1520 (V) |
| ROM |
128 MB |
| RAM |
128 MB |
| Scanning System |
Progressive |
| Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination |
0.005 lux@F1.0 |
| S/N Ratio |
>56 dB |
| Illumination Distance |
Up to 50 m (164.04 ft) (Warm light) |
| Illuminator On/Off Control |
Auto; Manual |
| Illuminator Number |
4 (Warm light) |
| Lens |
| Lens Type |
Fixed-focal |
| Lens Mount |
M12 |
| Focal Length |
3.6 mm |
| Max. Aperture |
F1.0 |
| Field of View |
H: 82°; V: 43°; D: 94° |
| Iris Control |
Fixed |
| Close Focus Distance |
2.2 m |
| Intelligence |
| IVS (Perimeter Protection) |
Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human). |
| Smart Search |
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video |
| Video Compression |
H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codec |
Smart H.265+; Smart H.264+ |
| Video Frame Rate |
Main stream: 2688 × 1520@(1–20 fps )/2560 × 1440@ (1–25/30 fps)
Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Stream Capability |
2 streams |
| Resolution |
4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control |
CBR/VBR |
| Video Bit Rate |
H.264: 32 kbps–6144 kbps
H.265: 12 kbps–6144 kbps |
| Day/Night |
Color/B/W |
| BLC |
Yes |
| HLC |
Yes |
| WDR |
120 dB |
| White Balance |
Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control |
Auto; Manual |
| Noise Reduction |
3D NR |
| Motion Detection |
OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) |
Yes (4 areas) |
| Smart Illumination |
Yes |
| Image Rotation |
0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
| Mirror |
Yes |
| Privacy Masking |
4 areas |
| Audio |
| Built-in MIC |
Yes |
| Audio Compression |
G.711a; G.711Mu; G.726; PCM |
| Alarm |
| Alarm Event |
No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception |
| Network |
| Network Port |
RJ-45 (10/100 Base-T) |
| SDK and API |
Yes |
| Network Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P |
| Interoperability |
ONVIF (Profile S; Profile G; Profile T); CGI |
| User/Host |
20 (Total bandwidth: 48 M) |
| Storage |
FTP; SFTP; Micro SD card (support max. 256 GB) |
| Browser |
IE; Chrome; Firefox |
| Management Software |
Smart PSS Lite;DSS;DMSS |
| Mobile Client |
iOS; Android |
| Cyber Security |
Configuration encryption;trusted execution;Digest;security logs;WSSE;account lockout;syslog;video encryption;802.1x;IP/MAC filtering;HTTPS;trusted upgrade;trusted boot;firmware encryption;generation and importing of X.509 certification |
| Certification |
| Certifications |
CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU |
| Port |
| Audio Input |
1 channel (RCA port) |
| Audio Output |
1 channel (RCA port) |
| Alarm Input |
2 channels in: wet contact, 5mA 3V–5V DC |
| Alarm Output |
2 channels out: wet contact, 300mA 12V DC |
| Power |
| Power Supply |
12 VDC/PoE (802.3af) |
| Power Consumption |
Basic: 2.7 W (12 VDC); 3.6 W (PoE)
Max. (H.265+ intelligence on + WDR + illuminator intensity): 8.6 W (12 VDC); 10.6 W (PoE) |
| Environment |
| Operating Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidit |
≤95% |
| Storage Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity |
≤95% |
| Protection |
IP67 |
| Structure |
| Casing Material |
Metal + plastic |
| Product Dimensions (L × W × H) |
201.0 mm × 103.8 mm × 97.8 mm |
| Net Weight |
0.71 kg |
- Bảo hành: 24 tháng.
